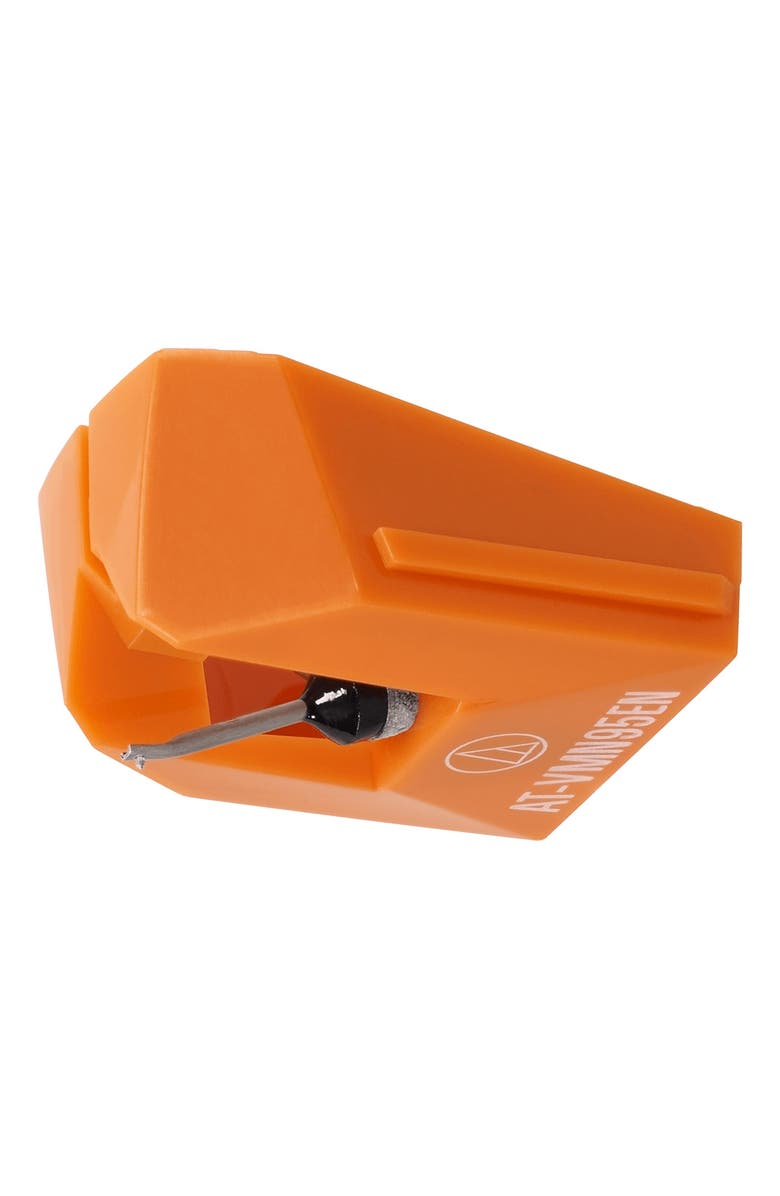

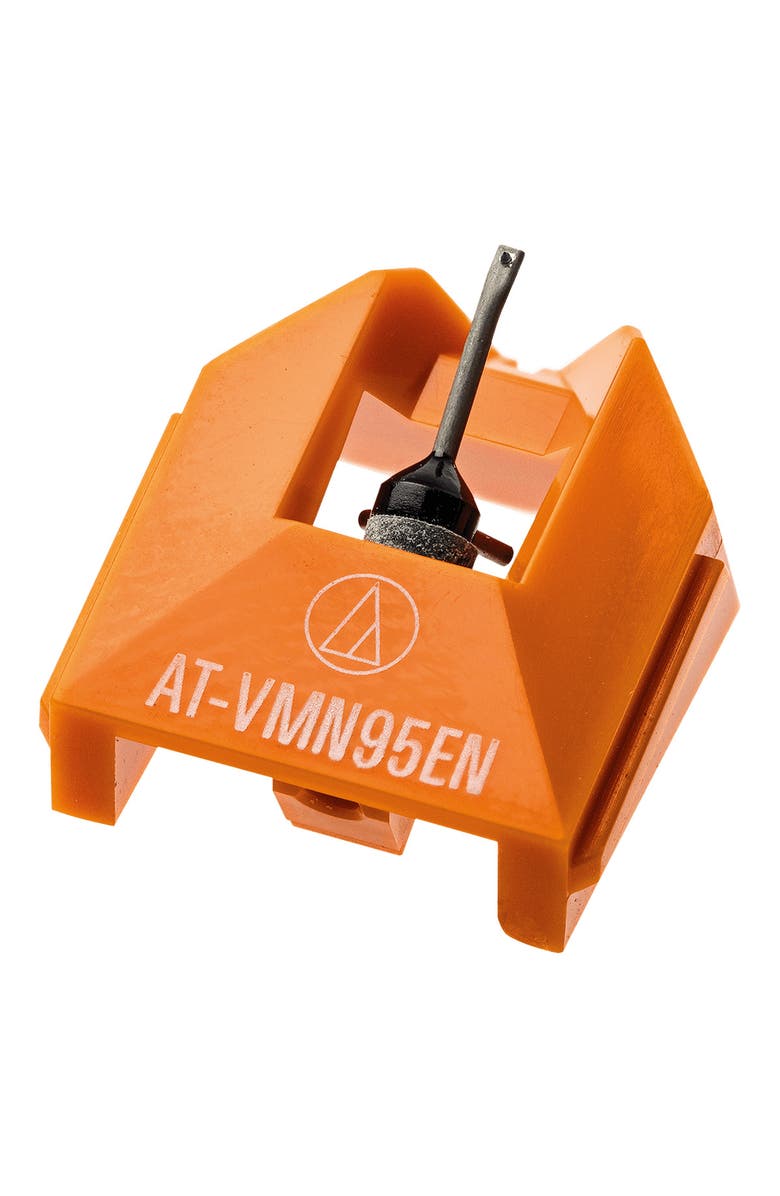

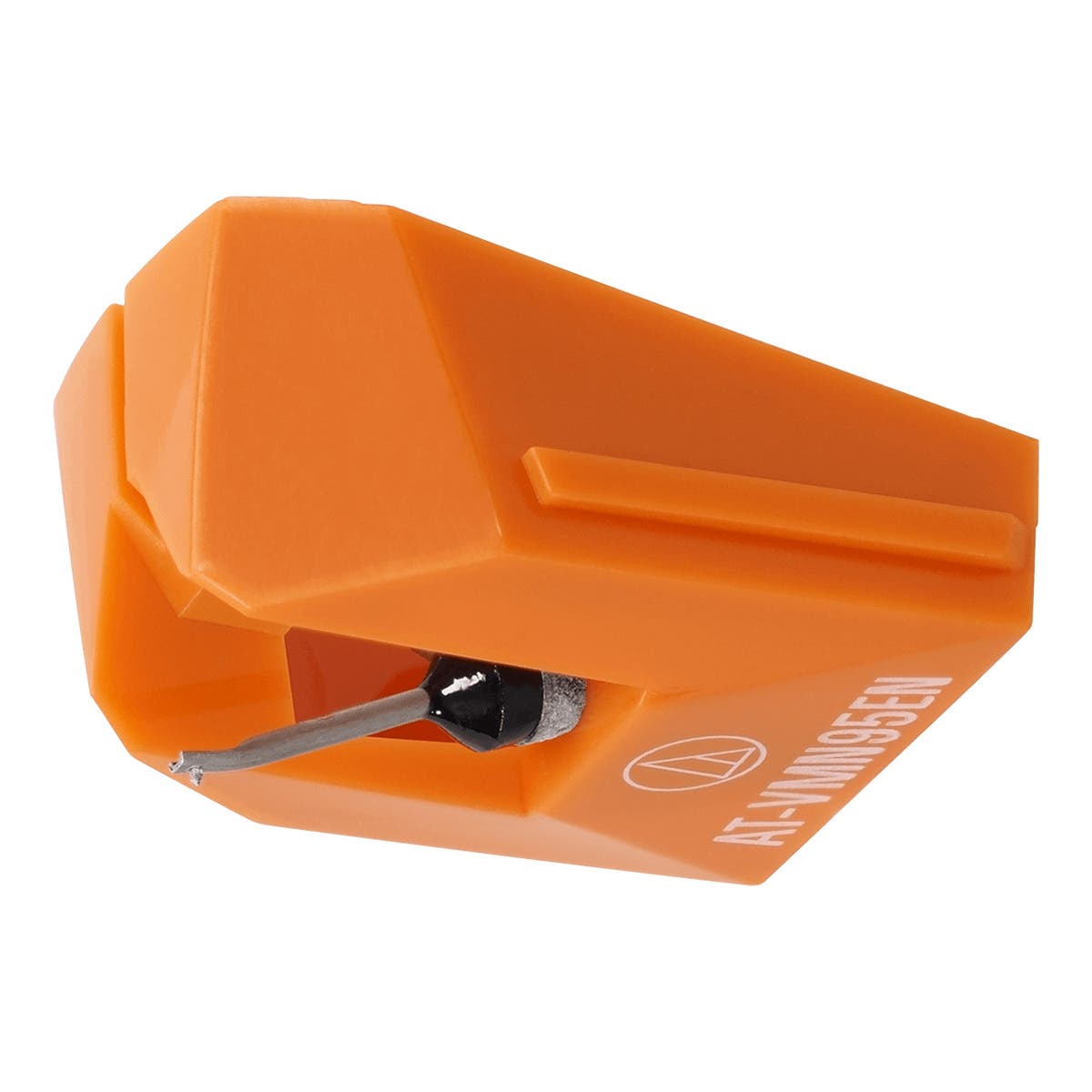

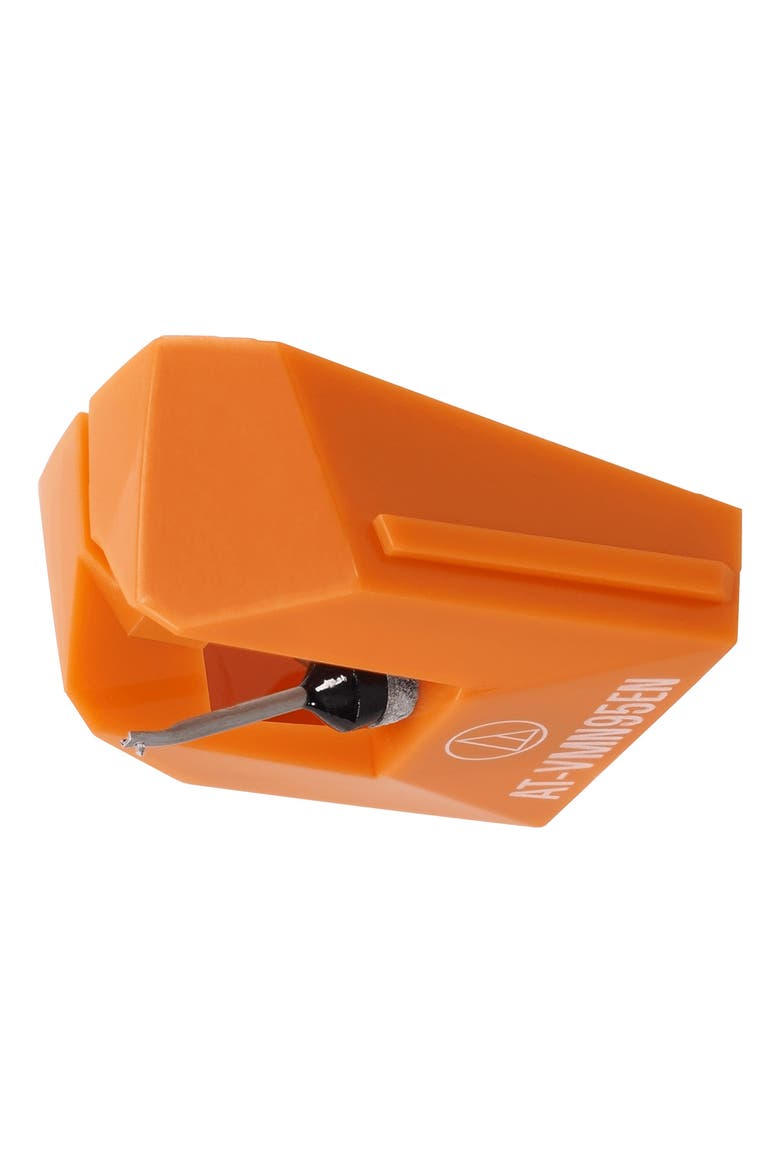

AT-VMN95EN Replacement Stylus
Audio-Technica
SOLD OUT
This item is no longer available. Browse our recommendations for something similar.
Details & care

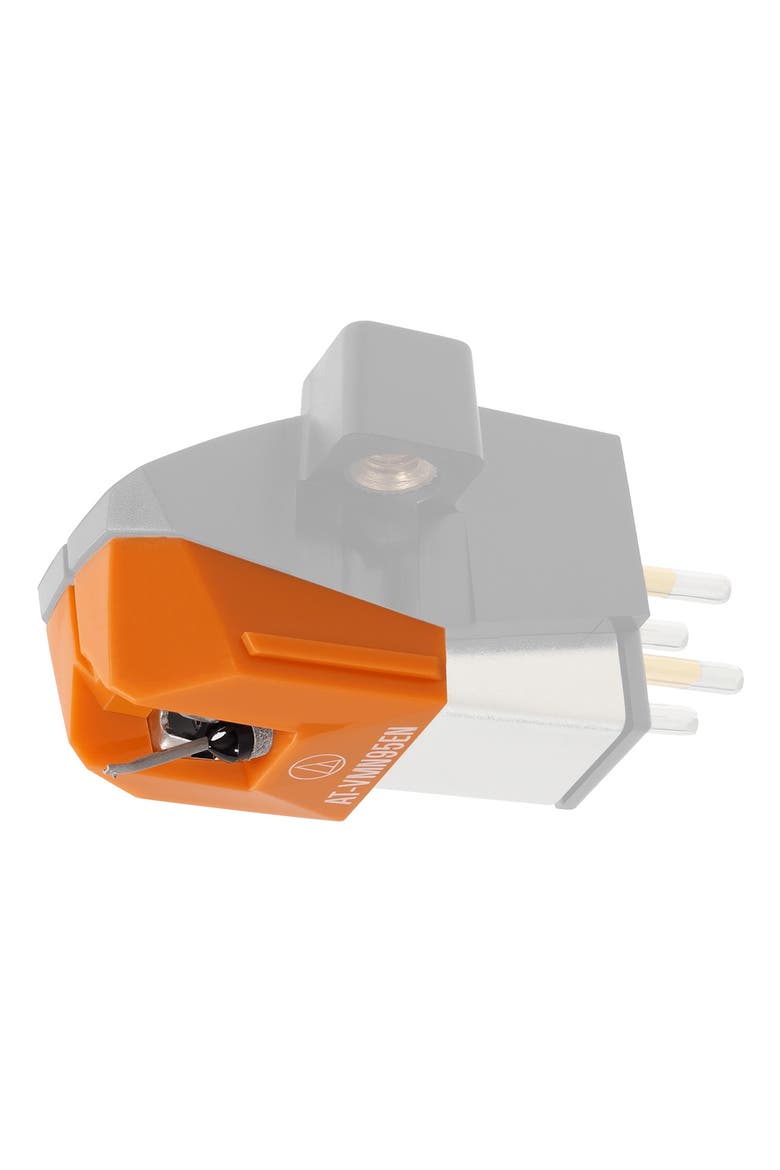

0.3 x 0.7 mil elliptical replacement stylus for AT-VM95EN Dual Moving Magnet Cartridge. What's in the Box AT-VMN95EN Replacement Stylus Specifications Frequency Response: 20-23000 Hz Channel Separation: 22 dB at 1 kHz Vertical Tracking Angle: 23 Vertical Tracking Force: 1.8-2.2 g (2.0 g standard) Stylus Construction: Nude round shank Recommended Load Impedance: 47000 ohms Coil Impedance: 3.3 k ohms (1 kHz) DC Resistance: 485 ohms Coil Inductance: 550 mH (1 kHz) Output Voltage: 3.5 mV (1 kHz 5 cm/sec.) Output Channel Balance: 2.0 dB (1 kHz) Stylus Shape: 0.3 x 0.7 mil elliptical Cantilever: Aluminum pipe Static Compliance: 20 x 10^-6 cm/dyne Dynamic Compliance: 7 x 10^-6 cm/dyne (100 Hz) Mounting: Half-inch Cartridge Weight: 6.1 g Dimensions (W x H x D): 18.9 mm x 17.2 mm x 28.3 mm
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Nude round shank
- Cantilever: Aluminum pipe
- Please check the product box for the Audio-Technica provided manual with instructions
- Item #11133167
