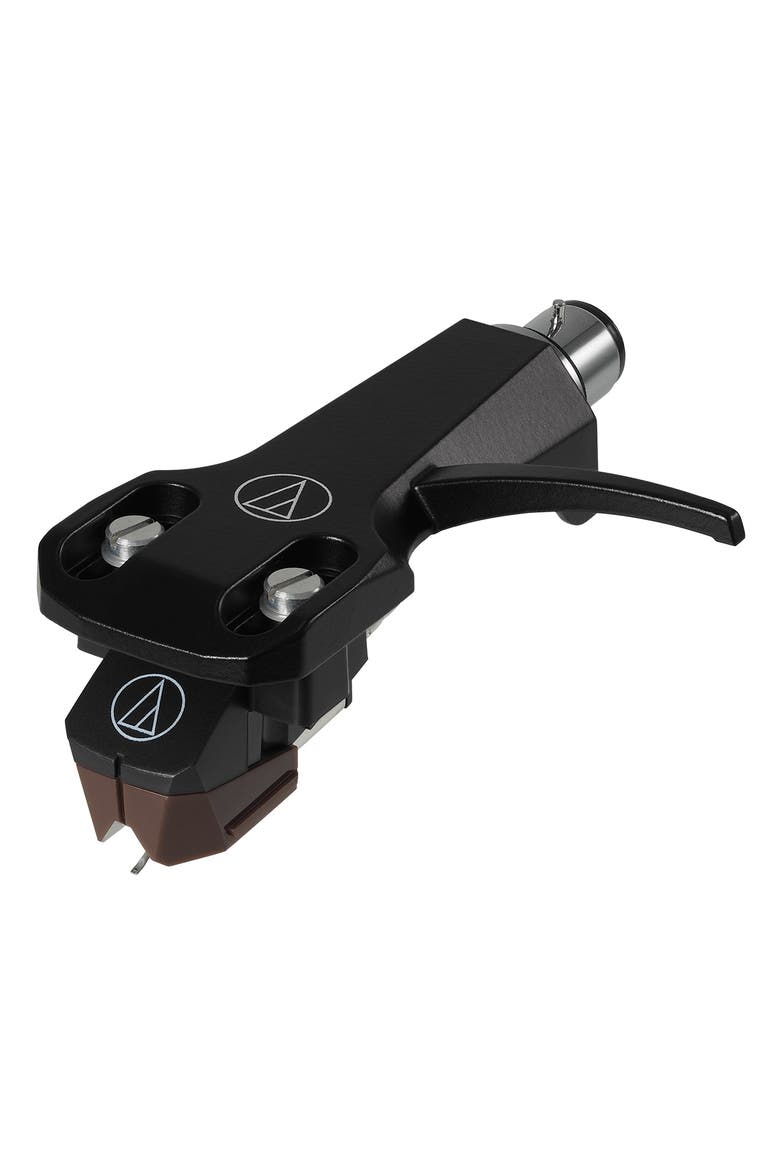

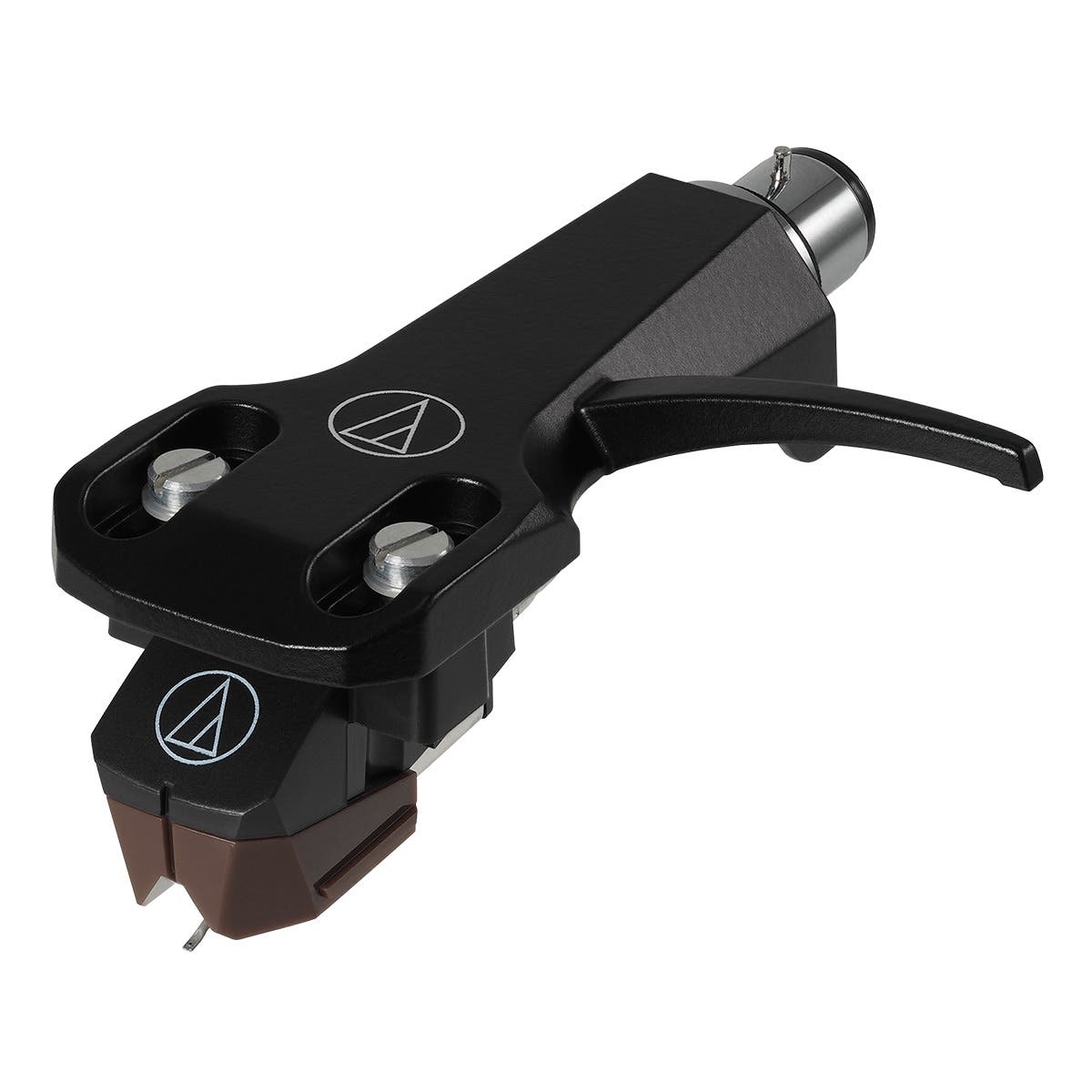

AT-VM95SH/H Headshell & MM Cartridge Combo Kit

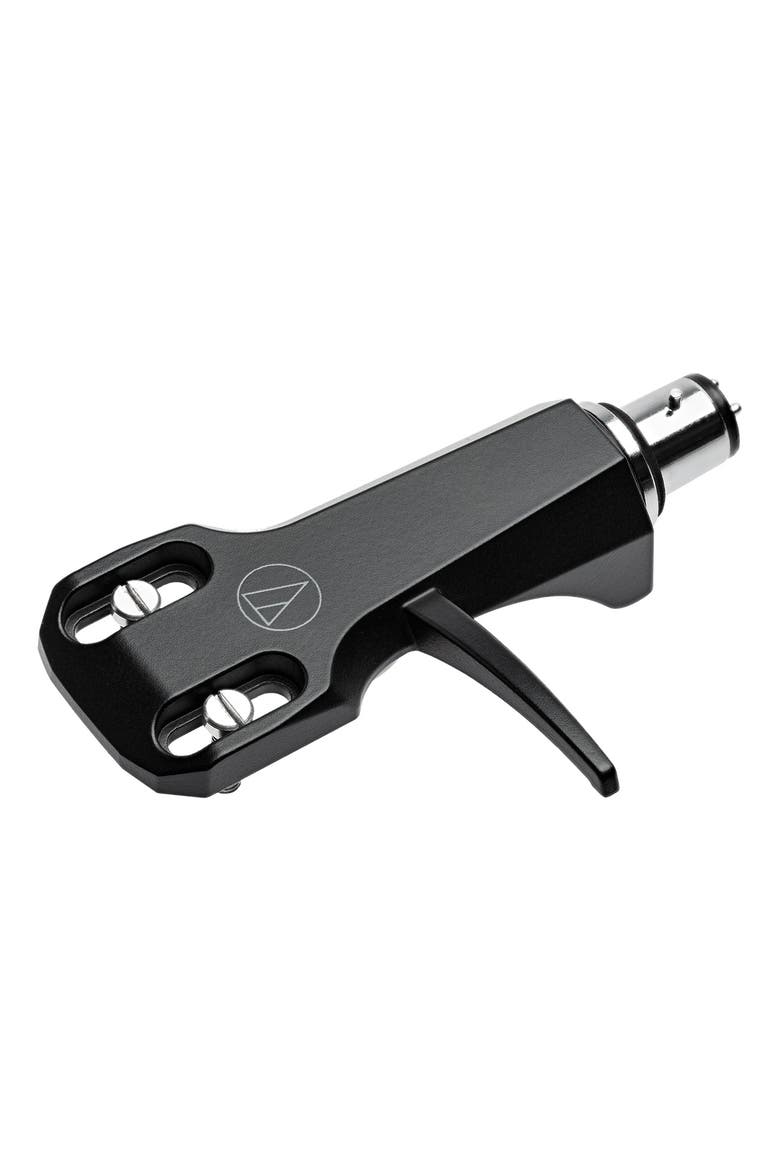

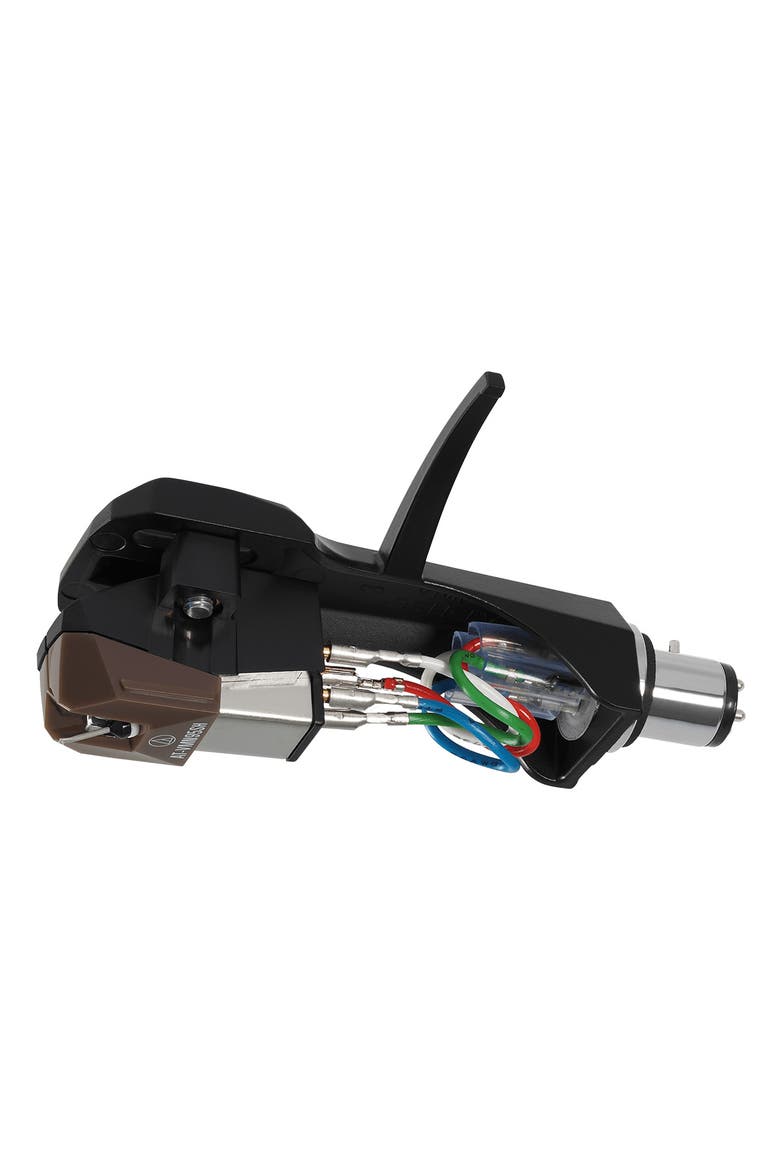

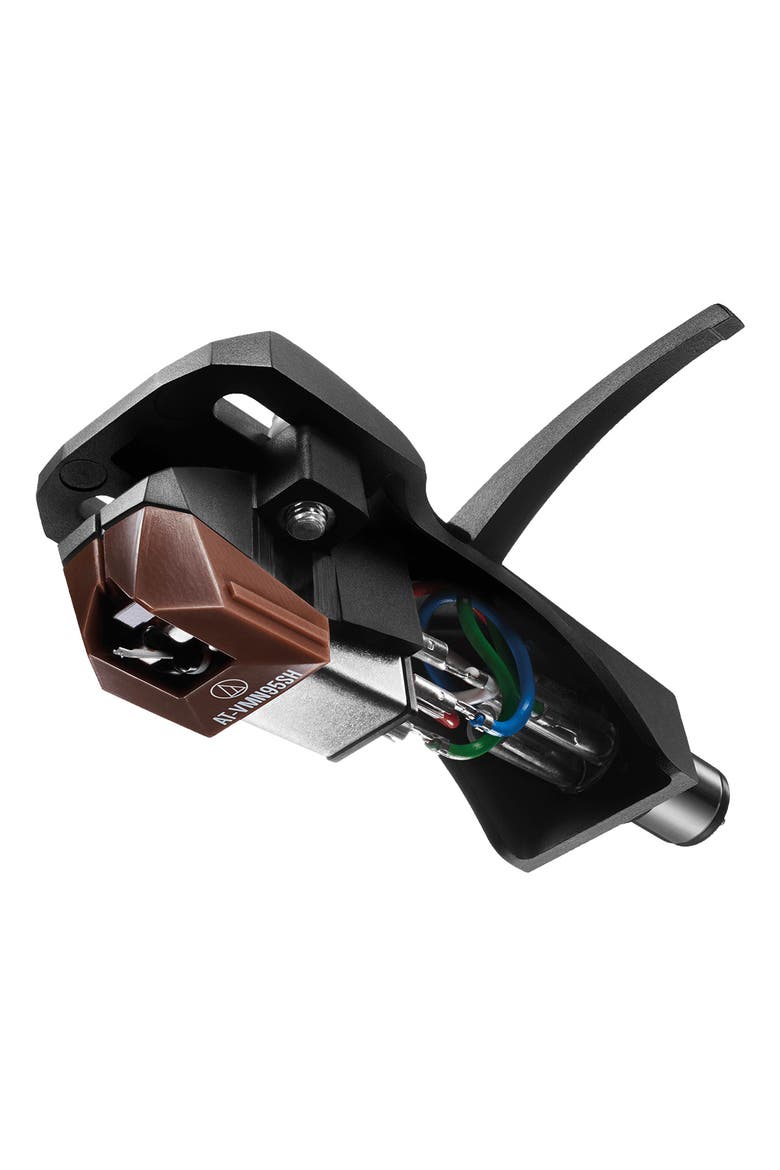

The AT-VM95SH/H combo kit includes the AT-VM95SH dual moving magnet cartridge premounted on the AT-HS6BK headshell. Features Shibata Stylus Aluminum Cantilever Dual Moving Magnet Design Durable Low-Resonance Housing Pre-Mounted on AT-HS6BK Headshell VM95 Series This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws no nuts required. And since all VM95 Series share the same body the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli. Whats in the Box AT-VM95SH/H Headshell MM Cartridge Combo Kit Installation Hardware Specifications Frequency Response: 20-25000 Hz Channel Separation: 23 (dB at 1 kHz) Vertical Tracking Angle: 23 Vertical Tracking Force: 1.8-2.2 g (2.0 g standard) Stylus Construction: Nude square shank Recommended Load Impedance: 47000 ohms Coil Impedance: 3.3 k ohms (1 kHz) DC Resistance: 485 ohms Coil Inductance: 550 mH (1 kHz) Output Voltage: 3.5 mV (1 kHz 5 cm/sec.) Output Channel Balance: 1.5 dB (1 kHz) Stylus Shape: 2.7 x 0.26 mil Shibata Cantilever: Aluminum pipe Static Compliance: 20 x 10 6 cm / dyne Dynamic Compliance: 10 x 10 6 cm / dyne (100 Hz) Mounting: Half-inch Dimensions (Cartridge Headshell): 0.84" x 0.83" 2.46" Mounting Feature: Half-inch mount Recommended Load Capacitance: 100 to 200 pF Replacement Stylus: AT-VMN95SH Stylus Size: 2.7 x 0.26mil Type: VM Stereo Dual Magnet Weight (Cartridge Headshell): 15.5 g (0.55 oz) Wire Used for Coil: T.P. Copper
