AT-VM95E/H Headshell & MM Cartridge Combo Kit

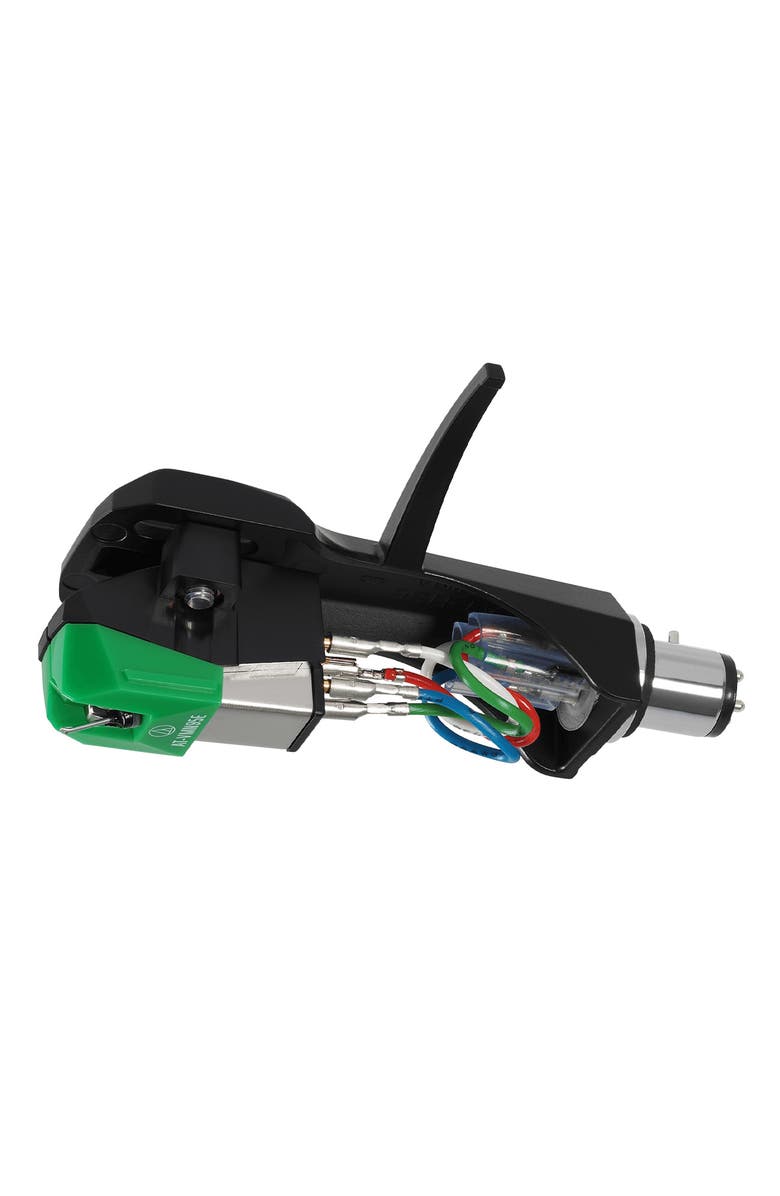

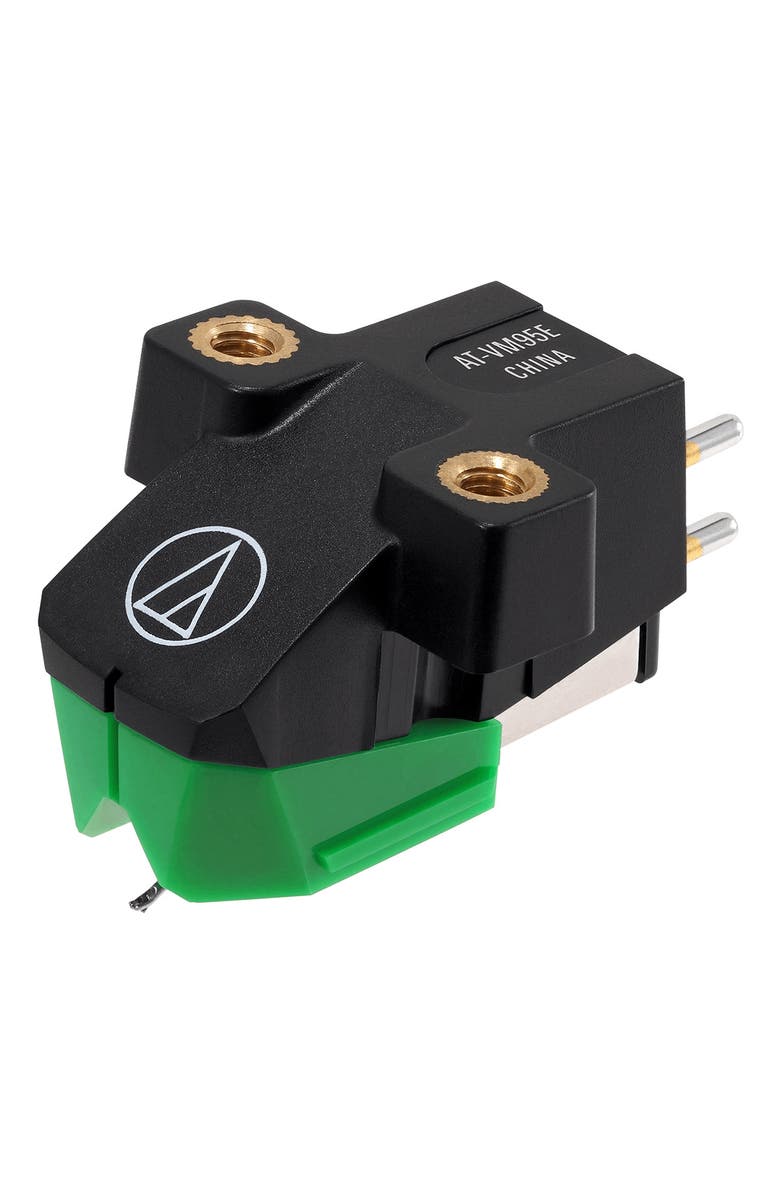

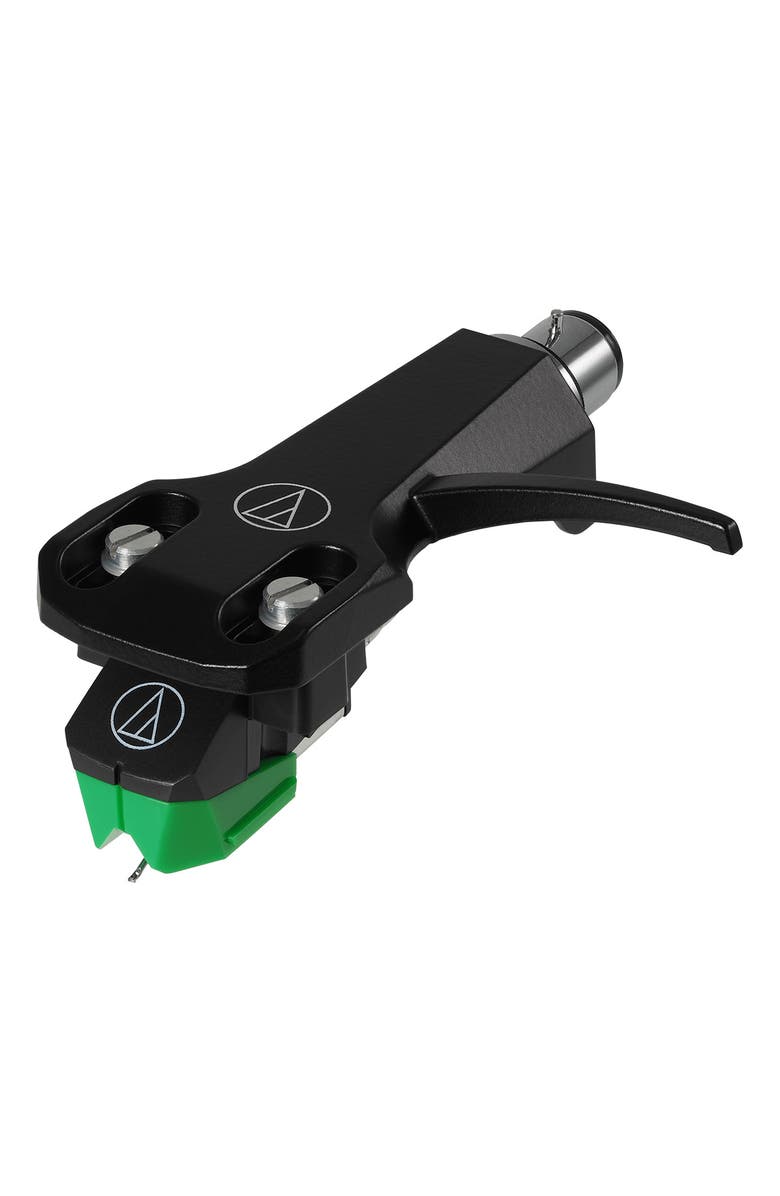

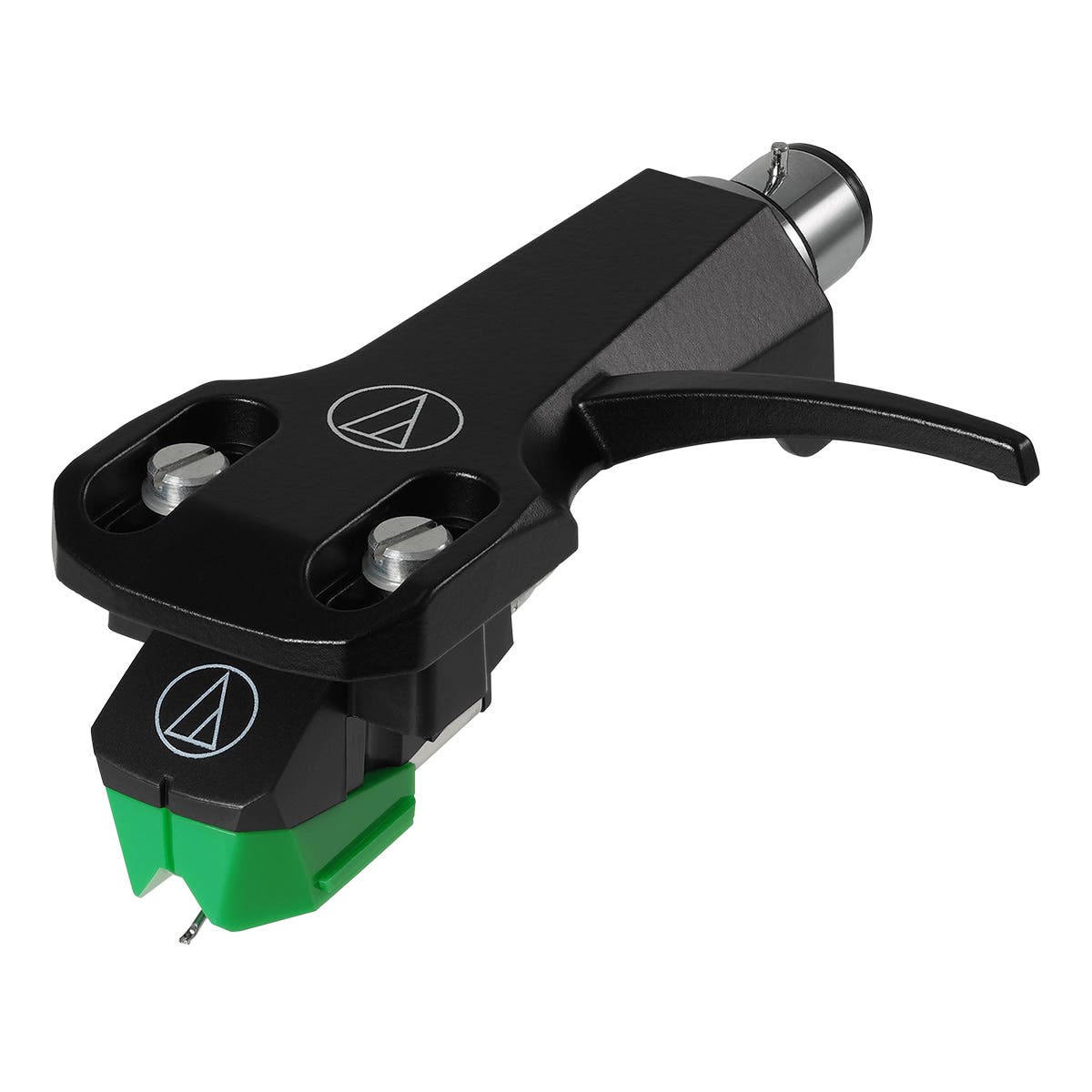

The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell. Features Elliptical Bonded Stylus on an Aluminum Cantilever Dual Moving Magnet Design Durable Low-Resonance Hosing High Output Level (4.0mV) VM95 Series This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridges special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws no nuts required. And since all VM95 Series share the same body the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli. What's in the Box AT-VM95E/H Headshell MM Cartridge Combo Kit Installation Hardware Specifications Frequency Response: 20-22000 Hz Channel Separation: 20 (dB at 1 kHz) Vertical Tracking Angle: 23 Vertical Tracking Force: 1.8-2.2 g (2.0 g standard) Stylus Construction: Bonded round shank Recommended Load Impedance: 47000 ohms Coil Impedance: 3.3 k ohms (1 kHz) DC Resistance: 485 ohms Coil Inductance: 550 mH (1 kHz) Output Voltage: 4.0 mV (1 kHz 5 cm/sec.) Output Channel Balance: 2.0 dB (1 kHz) Stylus Shape: 0.3 x 0.7 mil elliptical Cantilever: Aluminum pipe Static Compliance: 17 x 10 6 cm / dyne Dynamic Compliance: 7 x 10 6 cm / dyne (100 Hz) Mounting: Half-inch Dimensions (Cartridge Headshell): 0.84" x 0.83" 2.46" Model: AT-VM95E/H Mounting Feature: Half-inch mount Recommended Load Capacitance: 100 to 200 pF Replacement Stylus: AT-VMN95E Stylus Size: 0.3 x 0.7 mil Type: VM Stereo Dual Magnet Weight (Cartridge Headshell): 15.5 g (0.55 oz) Wire Used for Coil: T.P. Copper
