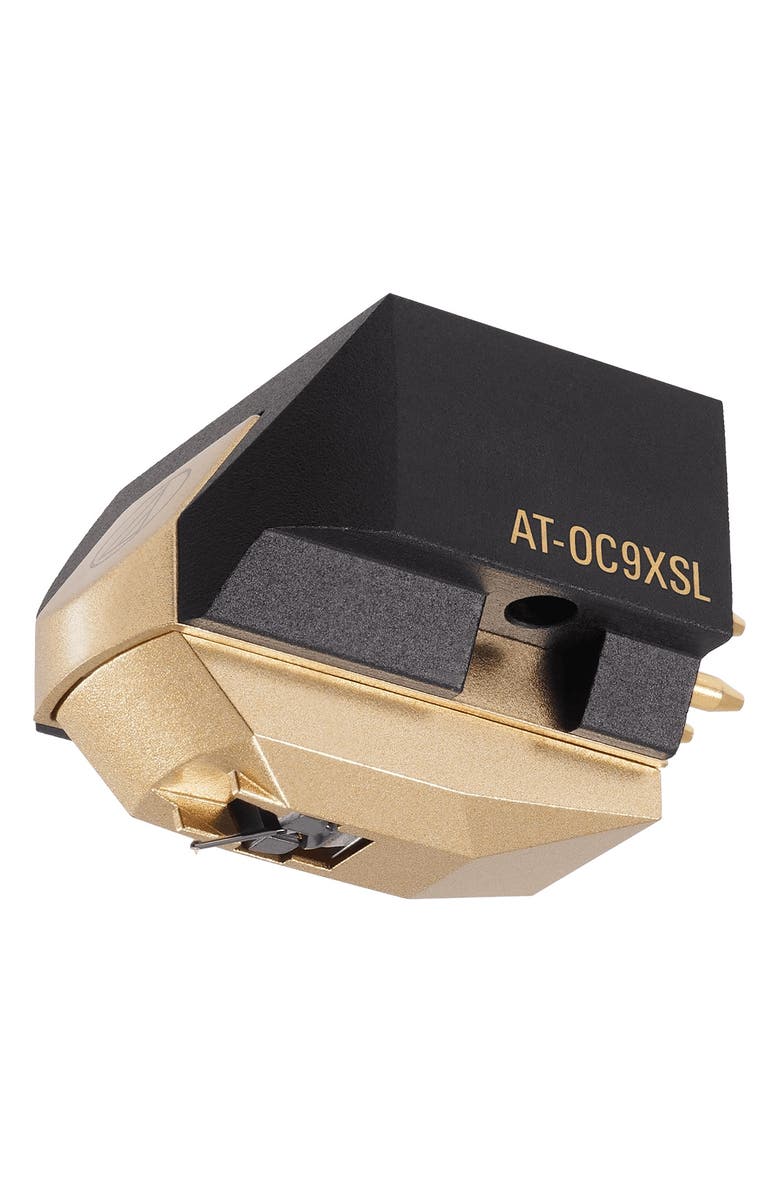

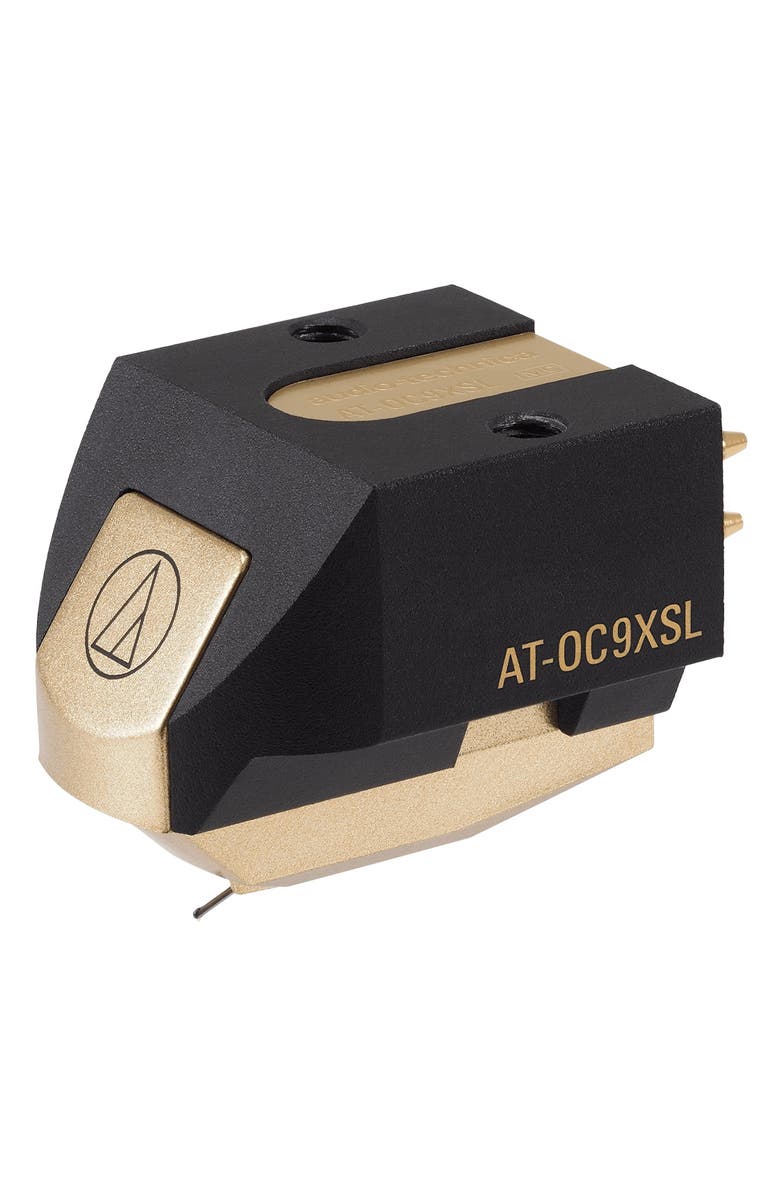

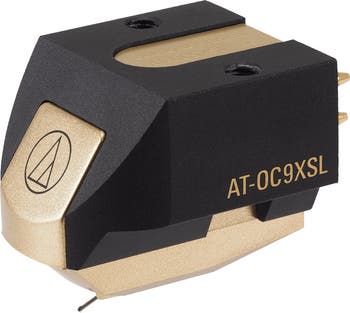

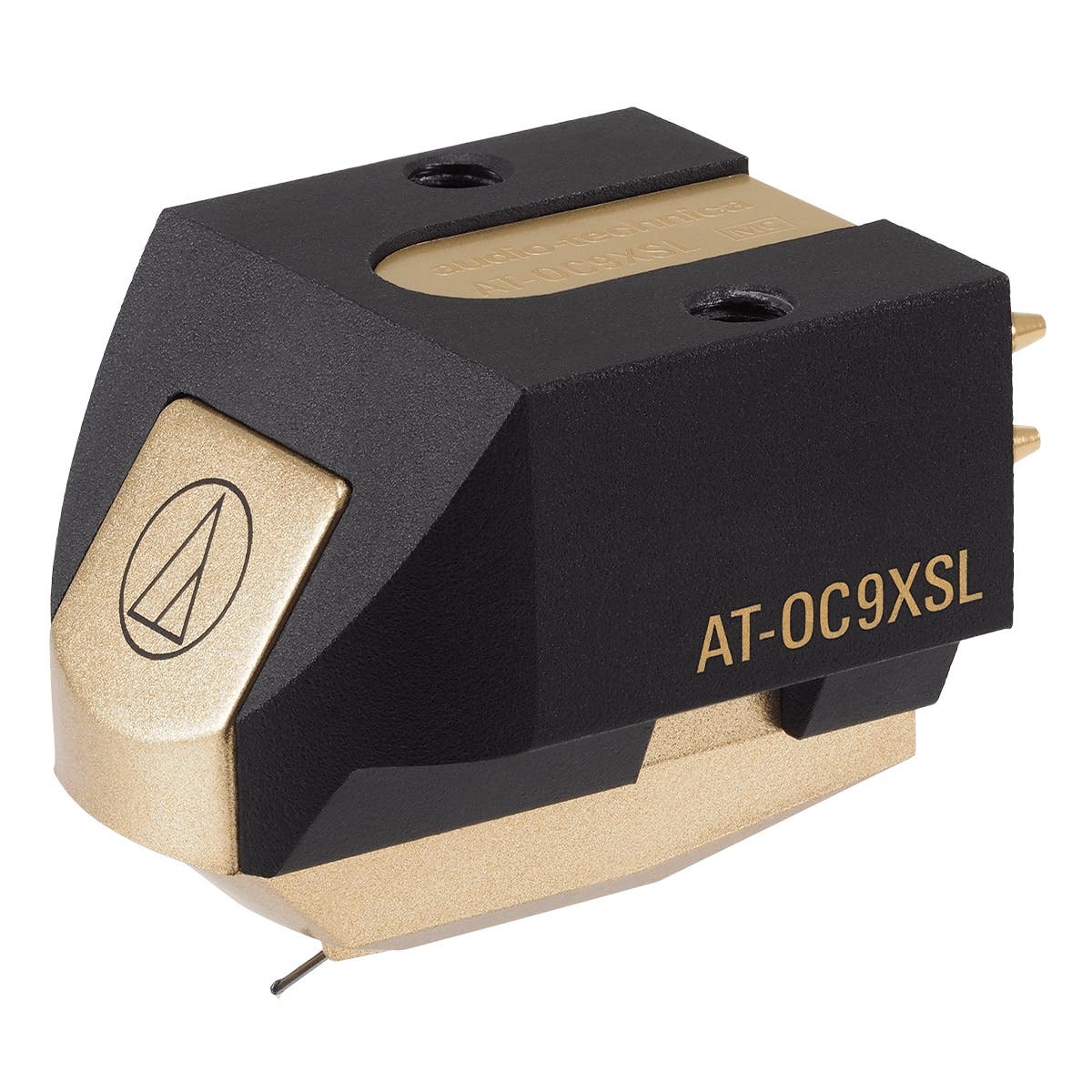

AT-OC9XSL Dual Moving Coil Cartridge

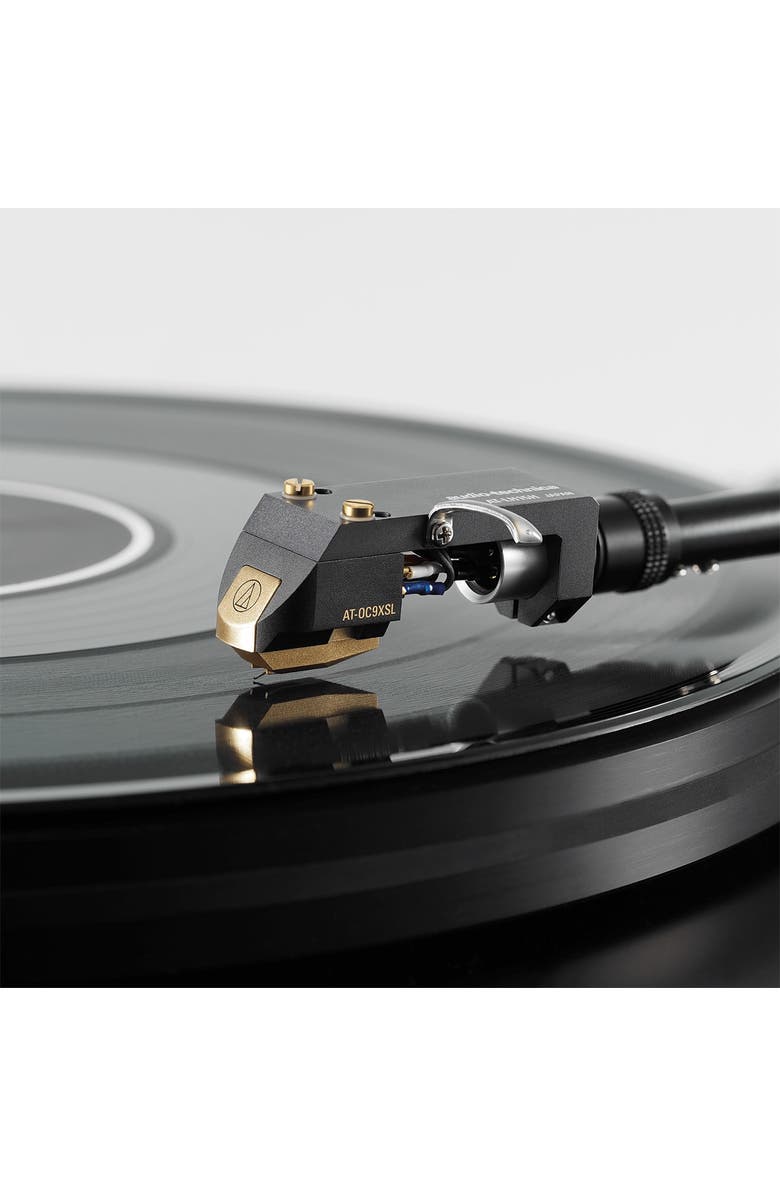

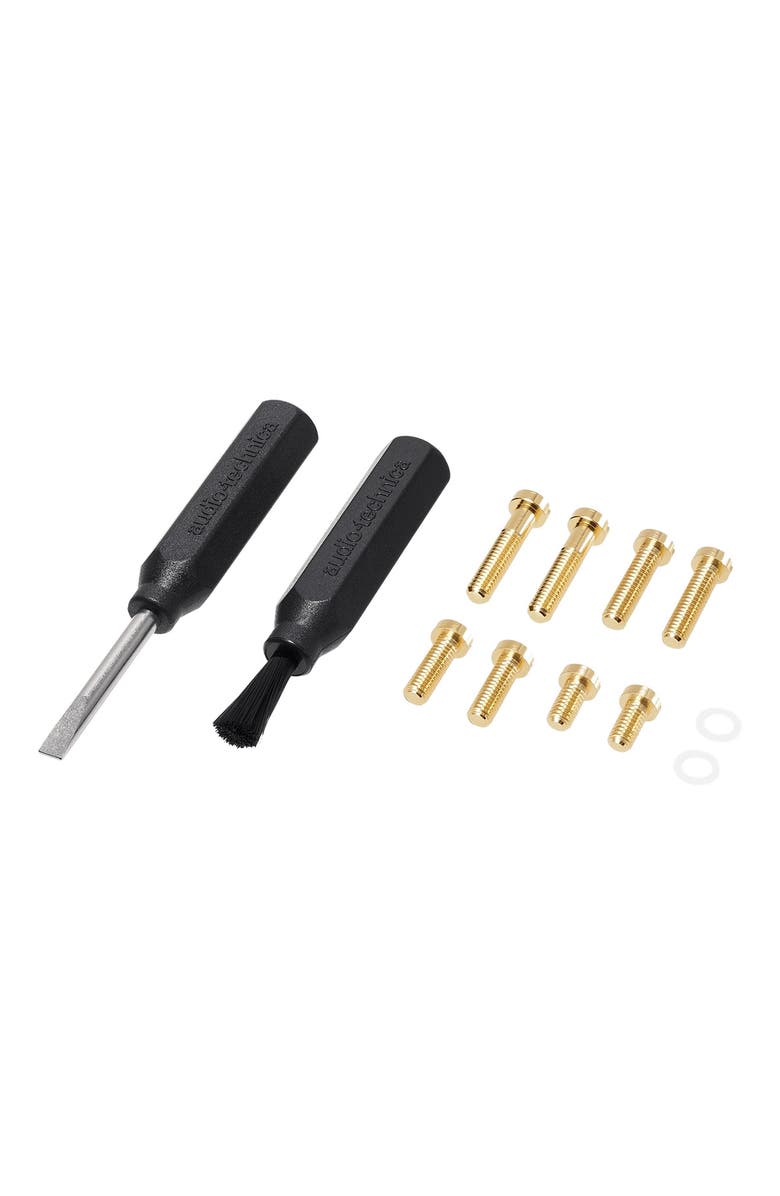

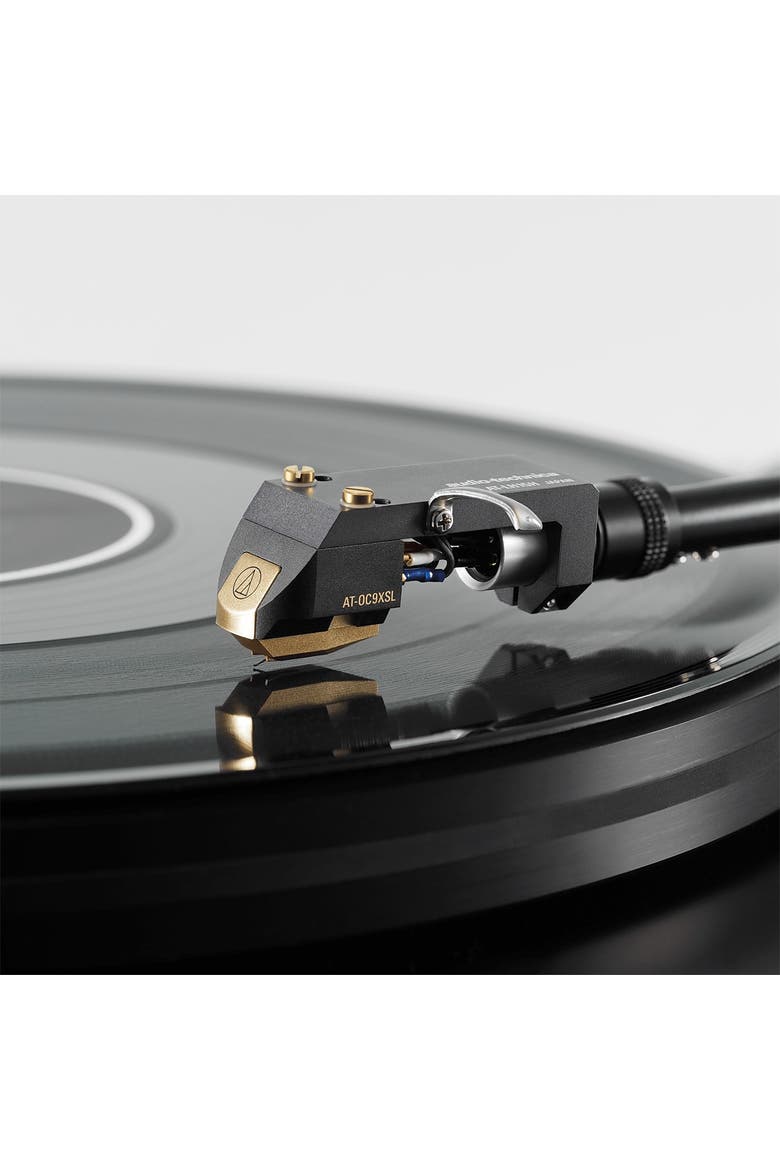

The AT-OC9XSL Dual Moving Coil cartridge with special line contact stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus thereby minimizing distortion. Features Dual Moving Coil Design Nude Special Line Contact Stylus Boron Cantilever Pre-Threaded Cartridge Body Aluminum Body Minimizes Unwanted Vibration Design Audio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and premium permendur yoke that dramatically increase the magnetic energy and the nude special line contact stylus on a boron cantilever that tracks the record groove with ultimate accuracy delivering rich full-range audio and high transient response. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required. What's in the Box AT-OC9XSL Dual Moving Coil Cartridge Non-Magnetic Screwdriver Installation Hardware Specifications Frequency Response: 20-50000 Hz Channel Separation: 28 dB (1 kHz) Vertical Tracking Angle: 20 Vertical Tracking Force: 1.8-2.2 g (2.0 g standard) Stylus Construction: Nude rectangular shank Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected) Coil Impedance: 12 ohms (1 kHz) DC Resistance: 12 ohms Coil Inductance: 25 mH (1 kHz) Output Voltage: 0.4 mV (at 1 kHz 5 cm/sec) Output Channel Balance: 0.5 dB (1 kHz) Stylus Shape: Special Line Contact Cantilever: 0.28 mm diameter nude boron Static Compliance: 22 x 10-6 cm/dyne Dynamic Compliance: 18 x 10-6 cm/dyne (100 Hz) Mounting: Half-inch Cartridge Weight: 7.6 g Dimensions (W x H x D): 0.68" 0.66" 1.01" Body Material: Aluminum Model: AT-OC9XSL Mounting Feature: Half-inch mount Stylus Curvature Radius: 1.5 x 0.28 mil Stylus Size: Nude rectangular shank Termi
