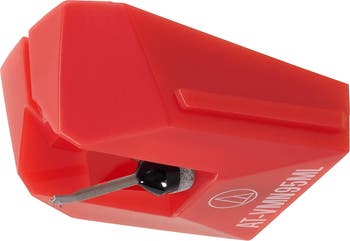

AT-VMN95ML Replacement Stylus
Audio-Technica
Details & care
2.2 x 0.12 mil microlinear replacement stylus for AT-VM95ML dual moving magnet cartridge. What's in the Box AT-VMN95ML Replacement Stylus Specifications Frequency Response: 20-25000 Hz Channel Separation: 23 dB at 1 kHz Vertical Tracking Angle: 23 Vertical Tracking Force: 1.8-2.2 g (2.0 g standard) Stylus Construction: Nude square shank Recommended Load Impedance: 47000 ohms Coil Impedance: 3.3 k ohms (1 kHz) DC Resistance: 485 ohms Coil Inductance: 550 mH (1 kHz) Output Voltage: 3.5 mV (1 kHz 5 cm/sec.) Output Channel Balance: 1.5 dB (1 kHz) Stylus Shape: 2.2 x 0.12 mil Microlinear Cantilever: Aluminum pipe Static Compliance: 20 x 10^-6 cm/dyne Dynamic Compliance: 10 x 10^-6 cm/dyne (100 Hz) Mounting: Half-inch Cartridge Weight: 6.1 g Dimensions (W x H x D): 18.9 mm x 17.2 mm x 28.3 mm
- SIGNATURE MAY BE REQUIRED UPON DELIVERY
- Channel Separation: 23 dB at 1 kHz
- Recommended Load Impedance: 47,000 ohms
- DC Resistance: 485 ohms
- Please check the product box for the Audio-Technica provided manual with instructions
- Item #11134523
