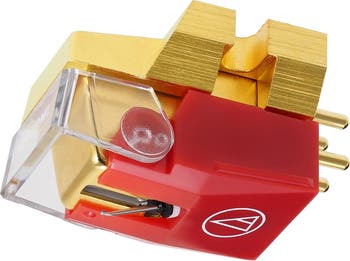

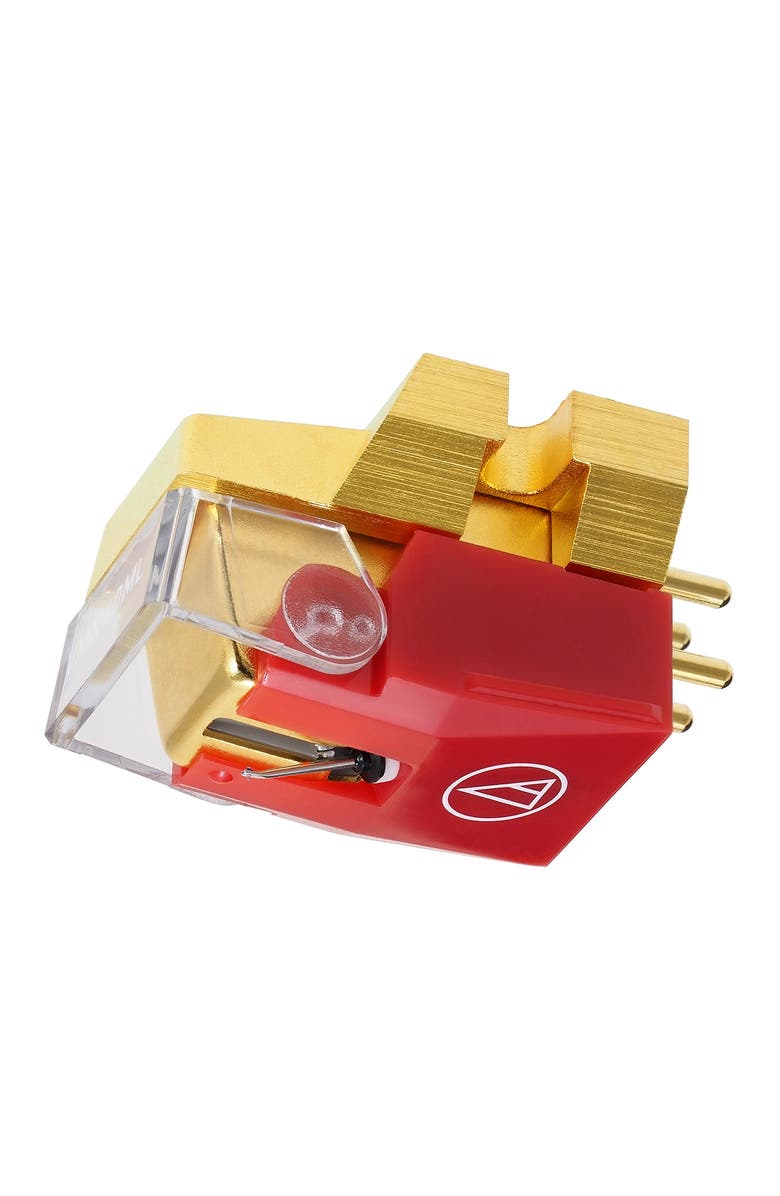

VM740ML Dual Moving Magnet Cartridge

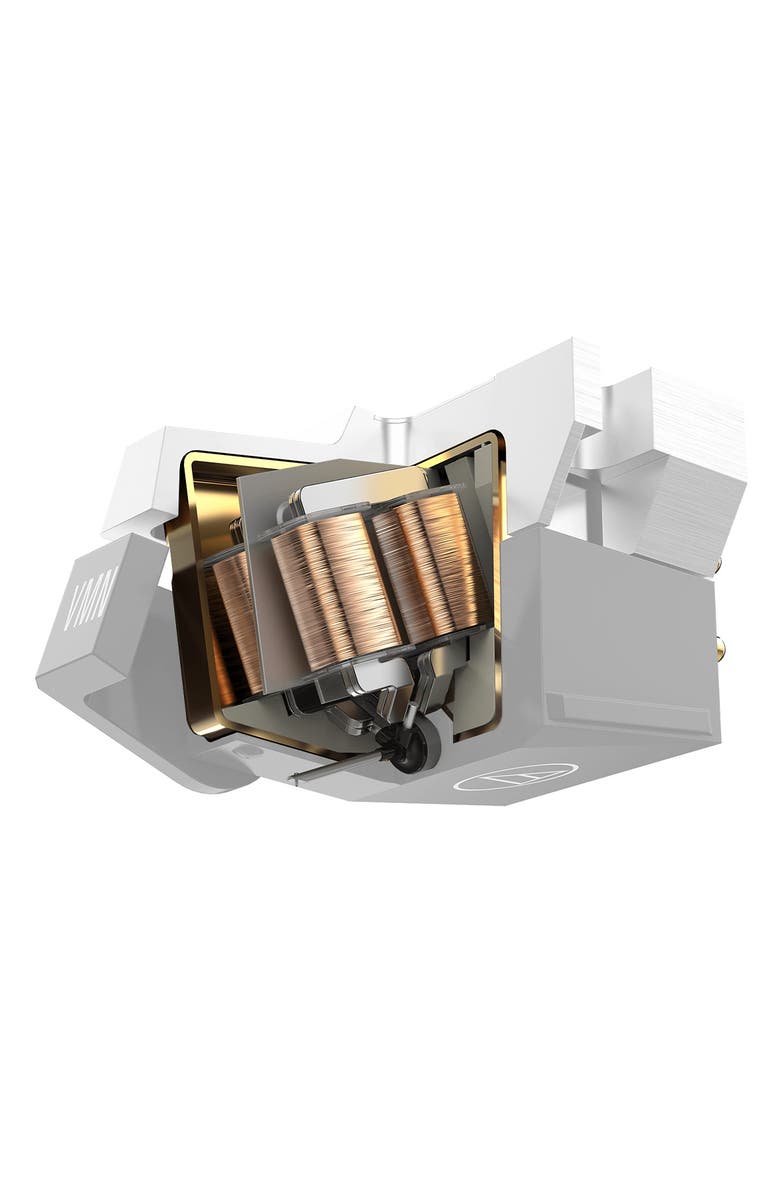

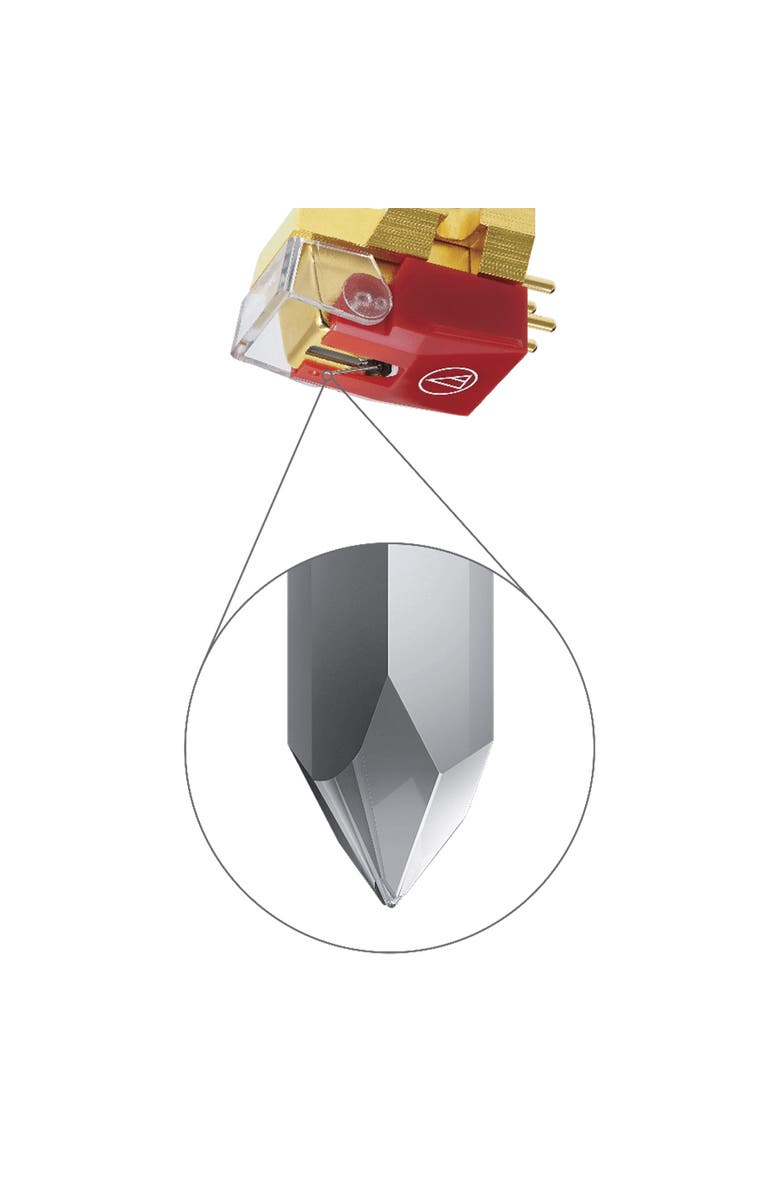

The VM740ML MicroLine stylus cartridge is a premier 700 Series model in Audio-Technicas new VM cartridge line a line that harks back to A-Ts early days as a manufacturer primarily of high-end phono cartridges while also incorporating todays advanced technology. Like all VM cartridges the VM740ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridges MicroLine stylus allows it to trace the record groove with incredible accuracy resulting in nuanced audio reproduction that elliptical and conical styli simply cant match. The styluss multilevel shape also wears better than other styli while reducing the wear on your records. Features VM dual magnet cartridge with MicroLine stylus Aluminum tapered cantilever Paratoroidal coils improve generating efficiency Center shield plate between the left and right channels reduces crosstalk Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield What's in the Box VM740ML Dual Moving Magnet Cartridge (4) Cartridge Installation Screws (2) Washers (2) Hex Nuts Non-Magnetic Screwdriver Brush Lead Wire Set Specifications Frequency response: 20 - 27000Hz Channel separation: 28dB (1kHz) Vertical tracking force: 1.8 - 2.2g Stylus construction: Nude square shank Recommended load impedance: 47000 ohms Output: 4.0mV Channel balance: 1.0dB Stylus shape: 2.2 x 0.12 mil MicroLine Mount: 1/2" Coil impedance: 2700 ohms (1kHz) DC resistance: 800 ohms Load capacitance: 100 - 200pF Coil inductance: 460mH (1kHz) Static compliance: 40 x 10-6cm/dyne Dynamic compliance: 10 x 10 - 6cm/dyne (100Hz) Vertical tracking angle: 23 Dimensions (H x W x D): 0.7" x 0.7" x 1.1" Weight: 0.3 ounces WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defe
