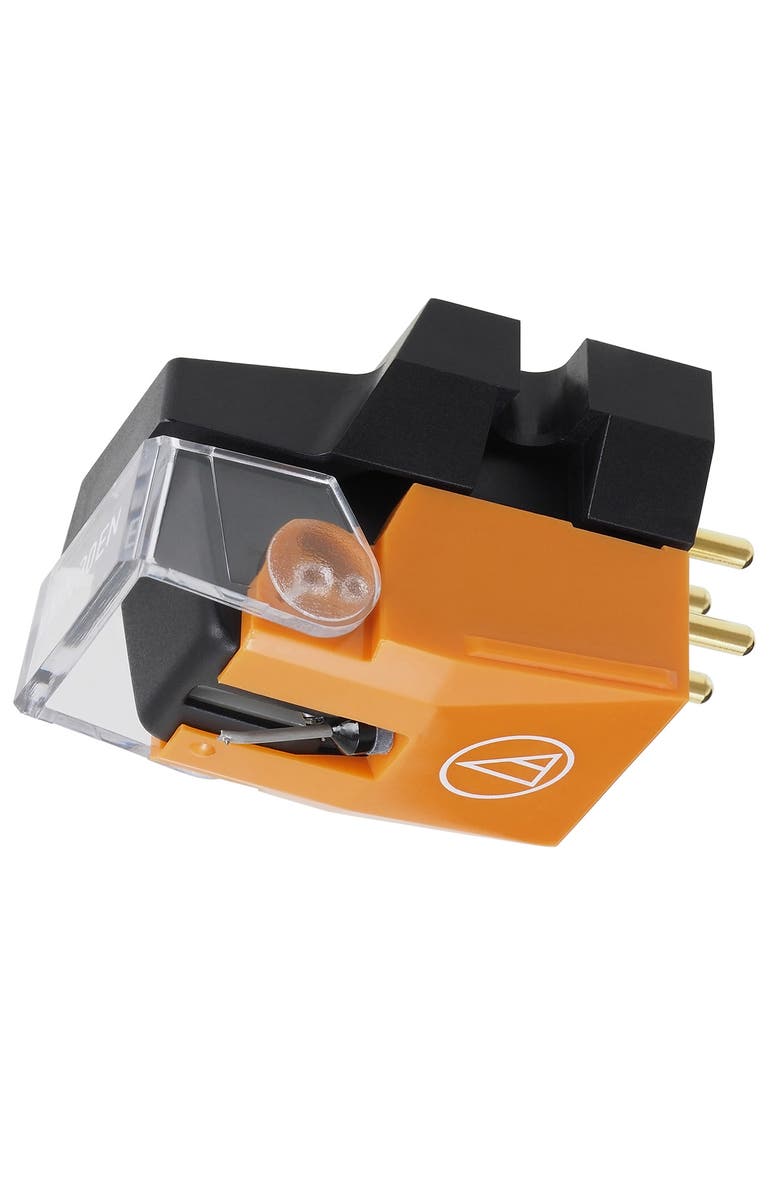

VM530EN Dual Moving Magnet Cartridge

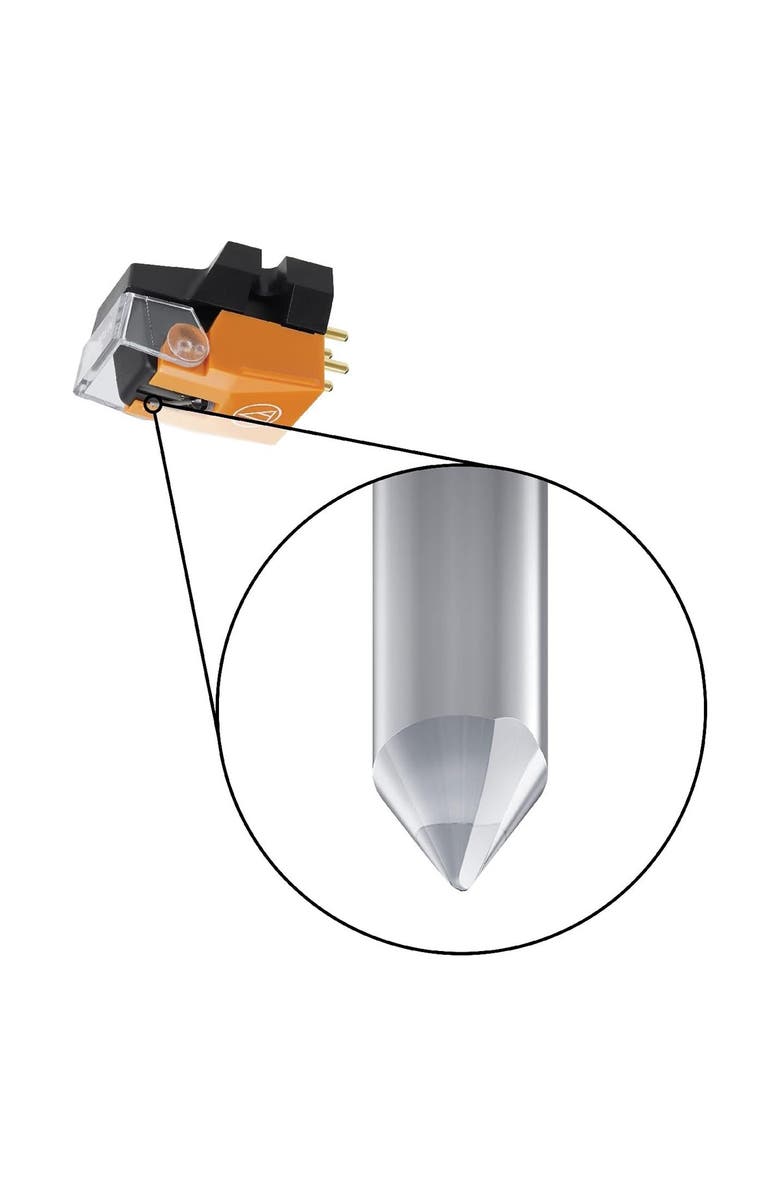

The VM530EN is a top-end elliptical stylus cartridge in Audio-Technicas new VM cartridge line a line that harks back to A-Ts early days as a manufacturer primarily of high-end phono cartridges while also incorporating todays advanced technology. Like all VM cartridges the VM530EN is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridges lightweight 0.3 x 0.7 mil elliptical nude stylus reduces the execution mass of the vibration system enabling fuller frequency reproduction and less tracking distortion than a bonded stylus. Features VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus Aluminum cantilever Paratoroidal coils improve generating efficiency Center shield plate between the left and right channels reduces crosstalk Durable low-resonance polymer cartridge housing What's in the Box: VM530EN Dual Moving Magnet Cartridge Four cartridge installation screws Two washers Two hex nuts Non-magnetic screwdriver Brush Specifications Frequency response: 20 - 25000Hz Channel separation: 27dB (1kHz) Vertical tracking force: 1.8 - 2.2g Stylus construction: Nude square shank Recommended load impedance: 47000 ohms Output: 4.5mV Channel balance: 1.5dB Stylus shape: 0.3 x 0.7 mil elliptical Mount: 1/2" Coil impedance: 2700 ohms (1kHz) DC resistance: 800 ohms Load capacitance: 100 - 200pF Coil inductance: 460mH (1kHz) Static compliance: 35 x 10-6cm/dyne Dynamic compliance: 8 x 10 - 6cm/dyne (100Hz) Vertical tracking angle: 23 Dimensions (H x W x D): 0.7" x 0.7" x 1.1" Weight: 0.2 ounces WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
