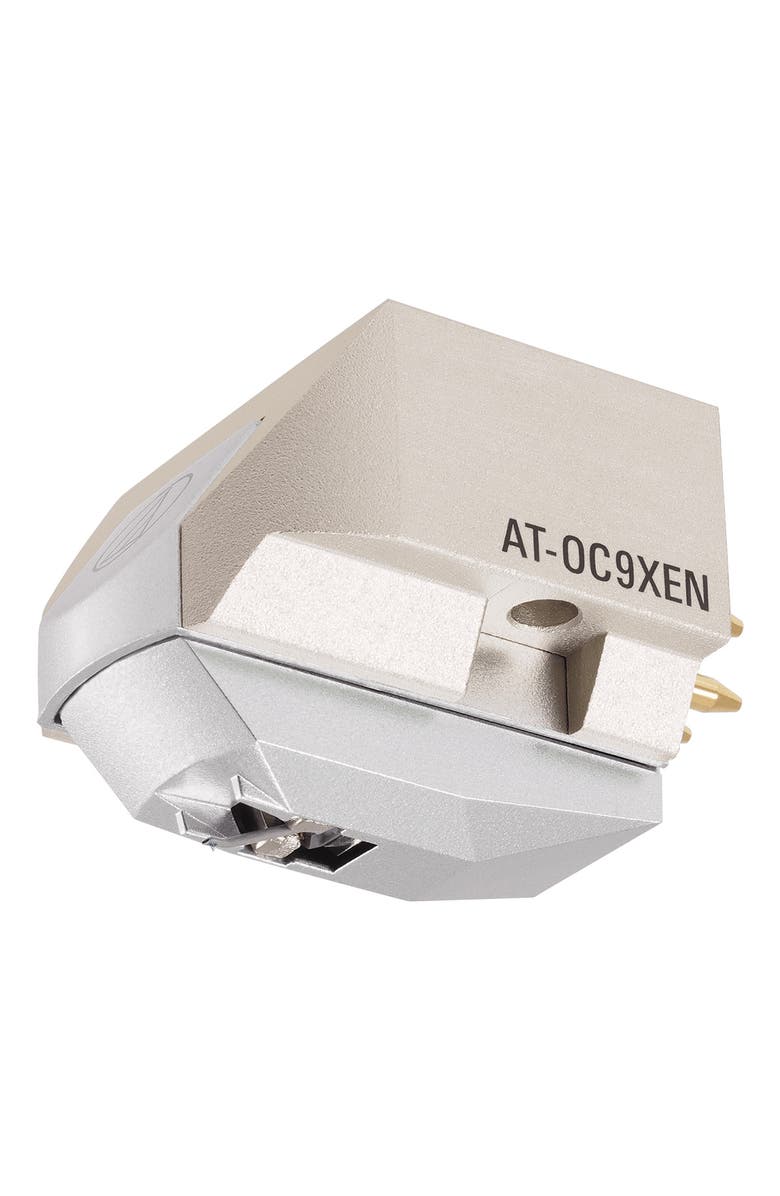

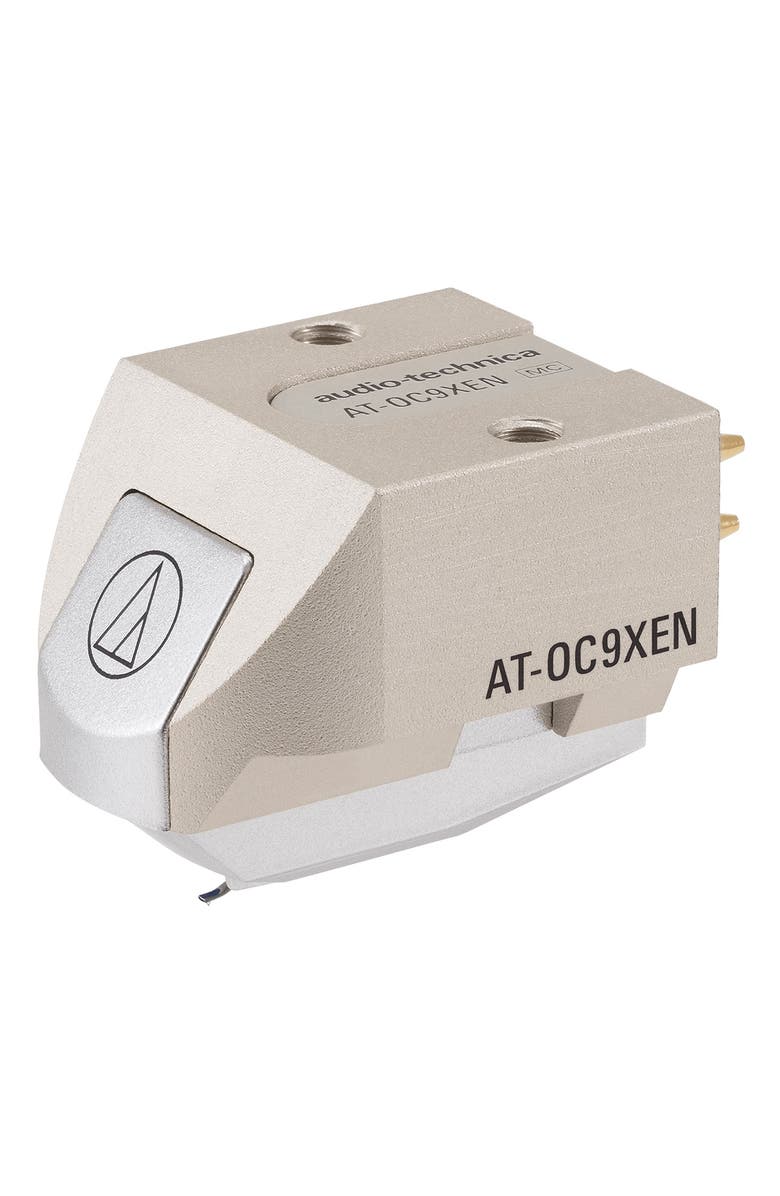

AT-OC9XEN Dual Moving Coil Cartridge

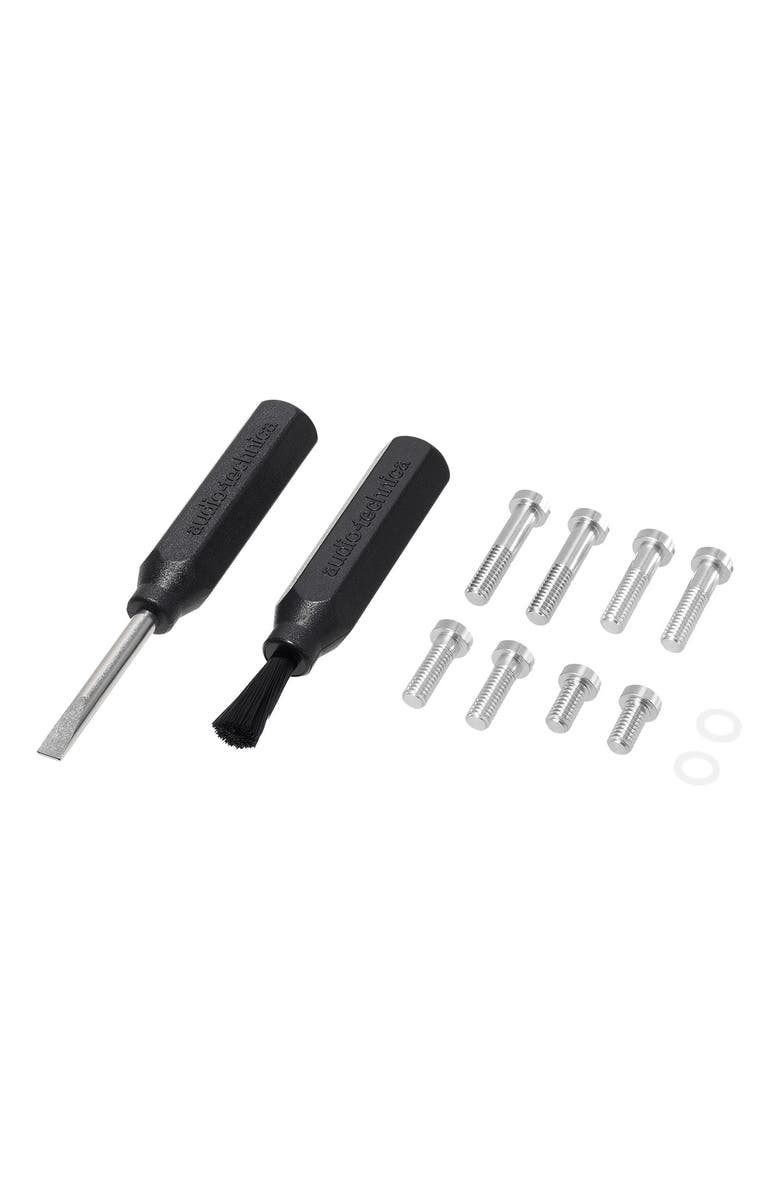

The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus thereby minimizing distortion. Features Dual Moving Coil Design Low Mass Nude Elliptical Stylus Aluminum Cantilever Pre-Threaded Cartridge Body Aluminum Body Minimizes Unwanted Vibration Design Audio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and pure iron yoke that increase the magnetic energy and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required. What's in the Box AT-OC9XEN Dual Moving Coil Cartridge Non-Magnetic Screwdriver Installation Hardware Specifications Frequency Response: 20-30000 Hz Channel Separation: 25 dB (1 kHz) Vertical Tracking Angle: 20 Vertical Tracking Force: 1.8-2.2 g (2.0 g standard) Stylus Construction: Nude square shank Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected) Coil Impedance: 12 ohms (1 kHz) DC Resistance: 12 ohms Coil Inductance: 25 mH (1 kHz) Output Voltage: 0.35 mV (at 1 kHz 5 cm/sec) Output Channel Balance: 1.5 dB (1 kHz) Stylus Shape: Elliptical nude Cantilever: Aluminum pipe Static Compliance: 20 x 10-6 cm/dyne Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz) Mounting: Half-inch Cartridge Weight: 7.6 g Dimensions (W x H x D): 0.66" x 0.68" 1.01" Body Material: Aluminum Stylus Size: Nude square shank Terminal Pins: Brass Type: Dual Moving Coil Weight: 7.6 g (0.3 oz)
